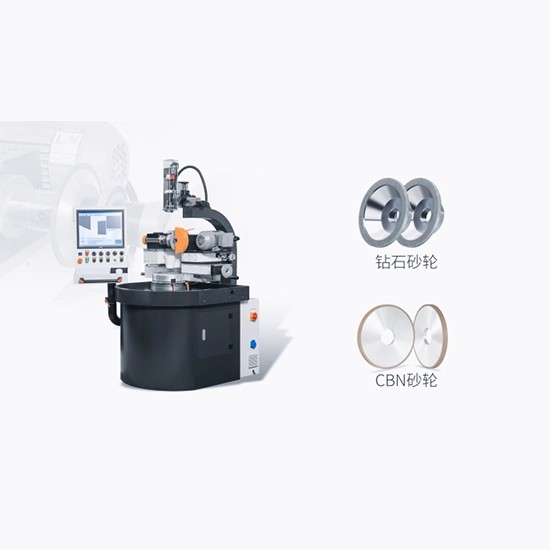

▶ It could not only trim diamond and CBN grinding wheel, but also the flat and side surface, angles, outer arcs and formed grinding wheel, as well as single and multiple grinding wheels.

▶ Ideal for grinding diamond and CBN grinding wheel, as well as other types of grinding wheels with convient and efficient effect.

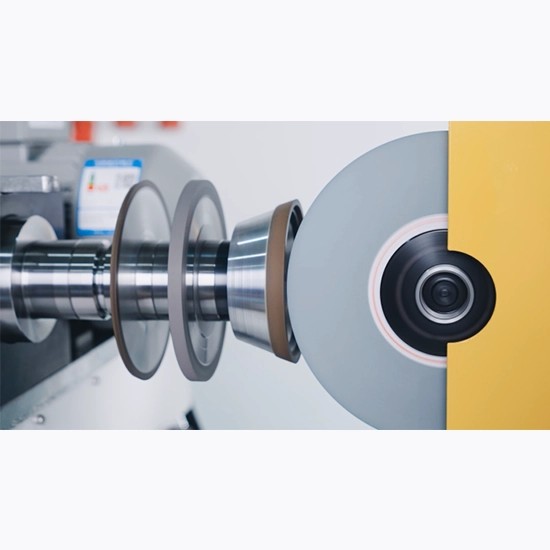

▶ Easy to operate with high accuracy grinding wheel. The principle is the speed difference between the repaired and dressing

▶ The repaired wheel is for diamond and CBN grinding wheel, while the grinding wheel is green silicon carbide grinding wheel.

▶ The repaired grinding wheel could be adjusted in X-axis and Y-axis.

▶ The dressing wheel could be adjusted in rotating A-axis, X1-axis and Y-axis directions with variable speed frequency reciprocating oscillation. The X1-axis and Y1-axis could be rotated and positioned for achieving 180 ° rotation of the whole grinding wheel.

▶ Equipped with a CCD optical measurement system, grating ruler digital display measurement system, 10 Up to 100x magnification system and LCD display
